Drilling machine

Our drilling machines are an ideal complement for graphic arts companys that needs this type of machinery for certain jobs. A robust and versatile machine that has a work table from 110cms up to the 320cms and from 1 to 6 mobile programmable drilling heads.

Cauhé drillings Cauhé are able to punch different types of materials as paper or cardborad as well as other types of thin materials. If you need to punch any another materials consult us.

Main features

Own compressor for the air table

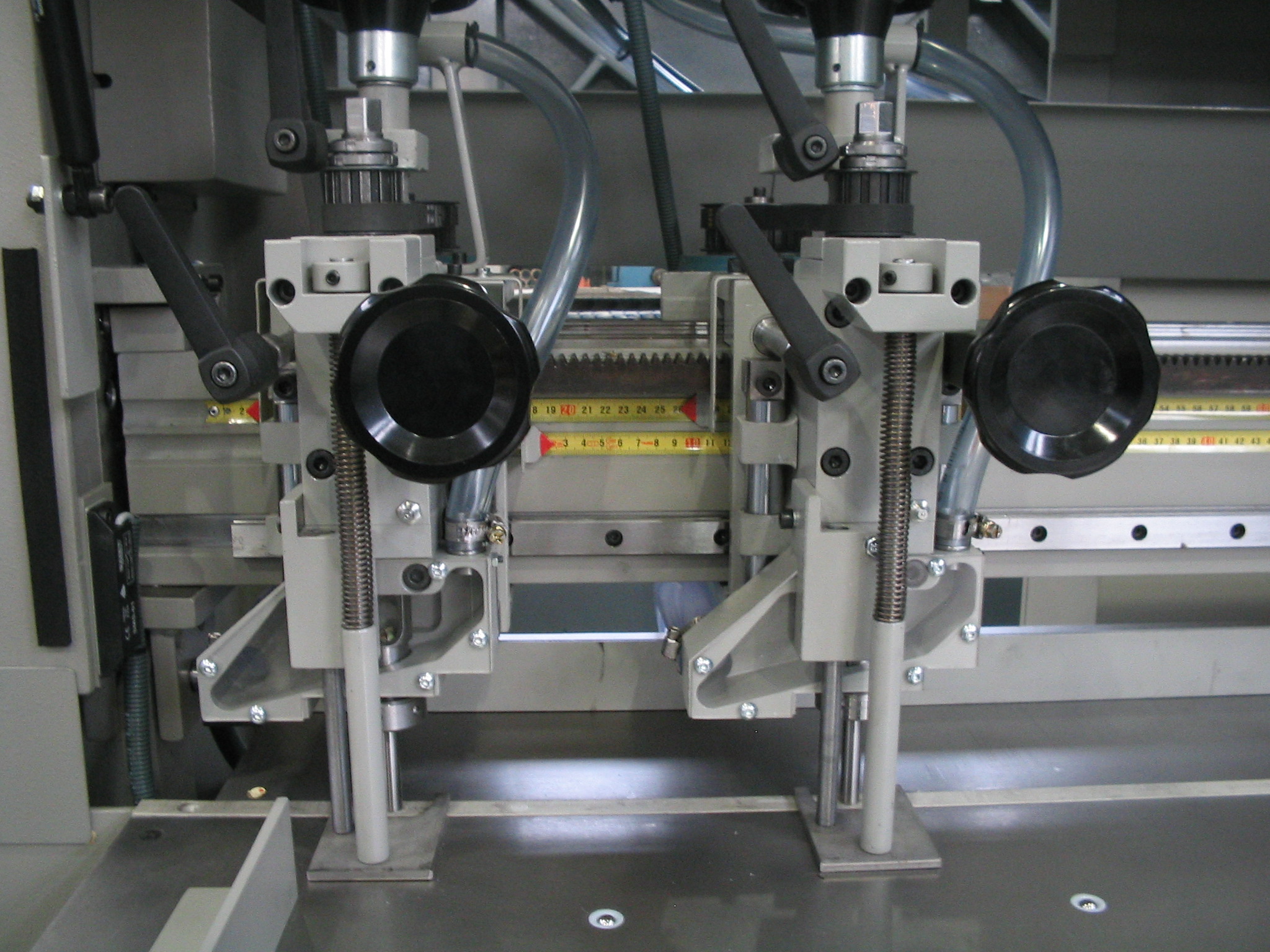

1 to 6 drilling heads
Automatic foot pedal control
Variable drill head speed and cycle speed
Removable front and side gauges for unlimited drilling length
Automatic waste collector system

Models and Formats

Model	CD1300	CD1600	CD2000	CD2300
A			1600
B	1500	1800	2200	2500
C			900
D	1300	1600	2000	2300
E			1300
G	1660	1960	2360	2660
H			1960

We can manufacture any table size or extra transfer tables to meet your production process.

Model	CD1300	CD1600	CD2000	CD2300	CD3200
Maximum drilling width	1100 mm	1400 mm	1800 mm	2100 mmm	3000 mmm
Minimum drilling width	140 mm with two or more drilling heads
Maximum drilling height			50 mm approx. depending on the drilling head
Maximum drilling length			200 mm
Minimum drilling length			10 mm with new drills, 32 mm with sharpened drills
Cycles per minute			20-35 depending on the main motor speed
Number of bits			1 set of ø4, ø6, ø8, ø10 and ø12 with every drilling head
Net weight	960 Kg	1100 Kg	1300 Kg	1500 Kg	2000 Kg
Power	3 kw	5 kw

We have a series of Options for our drills that facilitate the daily work and allows to automate and increase the production of the machine. Any other option can be designed specifically for you company's needs.
